Detailed questions for TY175 part 2

[Tioli]

I have numbered these and if you could add your input to a picture number that would be greatly appreciated.

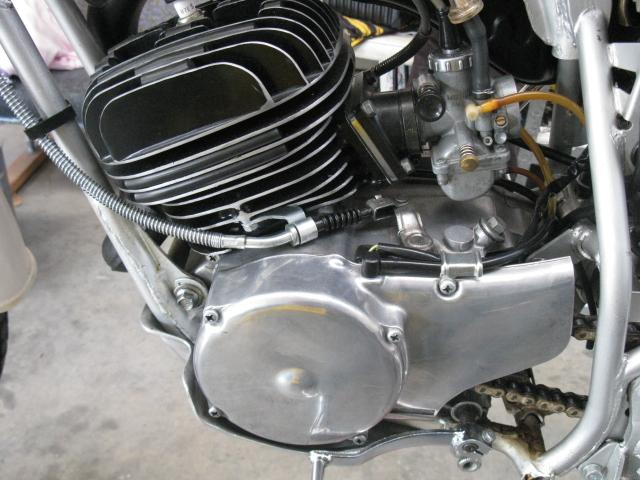

12 see any thing odd let me know

12 motor LHS (Small).JPG (61.26 KiB) Viewed 5213 times

13 are the dampers in the right place

13 dampners (Small).JPG (58.81 KiB) Viewed 5213 times

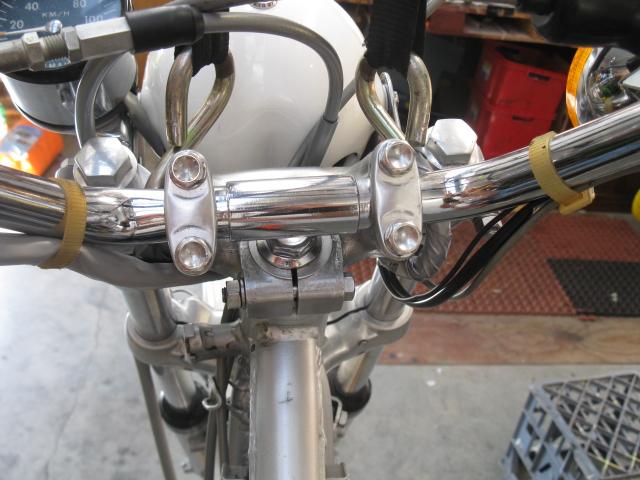

14 are the old yellowed cable straps the right ones

14 cable clamps (Small).JPG (55.44 KiB) Viewed 5213 times

16 new seat out of the wrapper showing off

16 new seat (Small).JPG (54.31 KiB) Viewed 5213 times

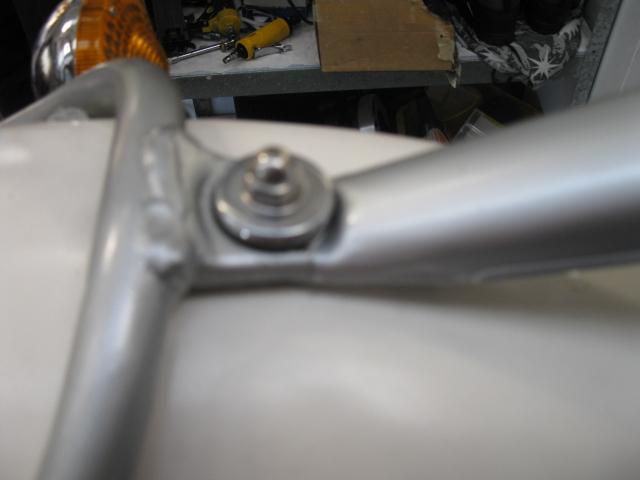

17 is this the right washer bolt and tail light combo

17 nut and washer (Small).JPG (25.54 KiB) Viewed 5213 times

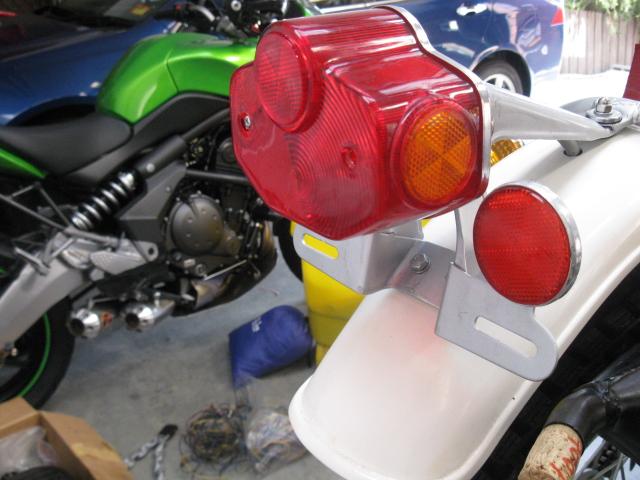

18 this is a reproduction of the right tail light except for the real one has a red side reflector. Yellow is a US thing it thinks.

18 tail light lens (Small).JPG (51.21 KiB) Viewed 5213 times

18.1 I have a original lens but it doesn’t quite fit the reproduction base plate. Any one with a original base plate I would be interested. Plus are these round reflectors on each side for our bike

18.1 lens base (Small).JPG (39.29 KiB) Viewed 5213 times

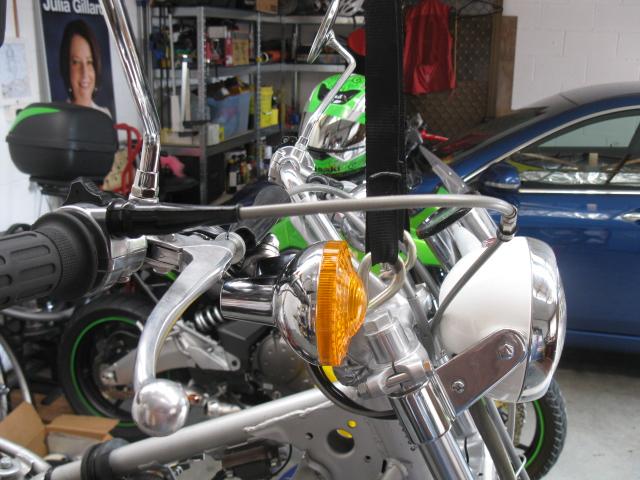

19 is that how the throttle cable runs

19 throttle route (Small).JPG (63.66 KiB) Viewed 5213 times

20 is that wire loop for the brake cable or the throttle cable on the other side

20 brake or throttle (Small).JPG (48.05 KiB) Viewed 5213 times

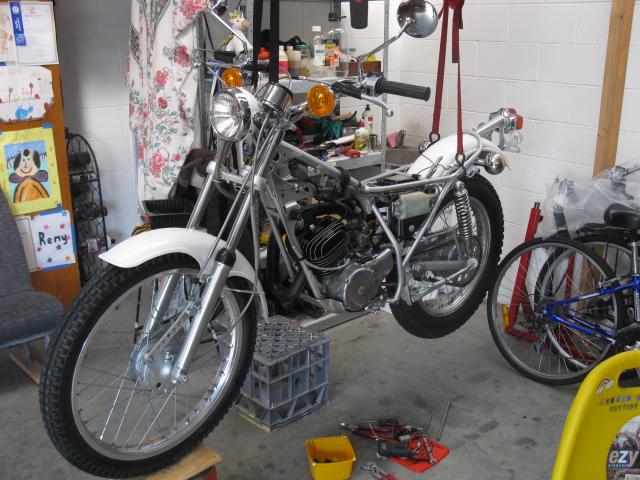

21 see any thing odd let me know

21 lhs (Small).JPG (68.91 KiB) Viewed 5213 times

22 I’m using the 206 shell wired to suit our wiring loom requirements as I think it looks better. (not original I know)


23 I believe these black plastic cases are the right ones for us. Don’t look as good though
24 when I put this motor back together I think I put the kick starter starting point in the wrong position. It sits at the top like normal but does not get compression till there.
25 what type of loom holder goes there
26 what type of cable holder holds the clutch cable there? Metal with plastic sleave, black plastic or clear plastic
27 battery box is new thanks to Greg. Are these the right blot and washers holding it on?
28 should I find a smaller top breather tube and run it through the casted hole on the carby body

Any help is good help in getting this bike back to original.
Thank you
Eric

[pop]

is that a poster of Gillard on your wall????

[Tioli]

First female prime minister, what can I say?

[David Lahey]

13 wrong plug cap
14 don't the handlebar electric cables run through the middle of the bars?
28 yes you could but it is a pain when you want to take the float bowl off
original handlebar grips are available from Yamaha

[pop]

Apart from the Gillard poster the TY looks wonderfull

[Tioli]

Thanks David
13 Wow I hunted up and down the wreckers some years ago and decided they looked right. Now I have no idea what one should look like. I will have to see if you can get them new but original.
14 no way are the left ones fitting inside the handle bars. I will check out the right side thanks
Handle bar grips? I thought they were original? I will have to chase them up aswell.
Thanks so far

[David Lahey]

I'm only going by memory for the plug cap and memory is saying that there is no screw clamp on the original cap. Memory is also saying that the JC cap is big, black and bulbous. Another thing to check out on my sister's bike

[scrivo]

First female prime minister, what can I say?

You could say sorry and invite us all around to hold a burning and cleansing ritual
