Killswitch for a James

Barry Pugh · Post by **Barry Pugh** » Mon Sep 28, 2020 7:53 am

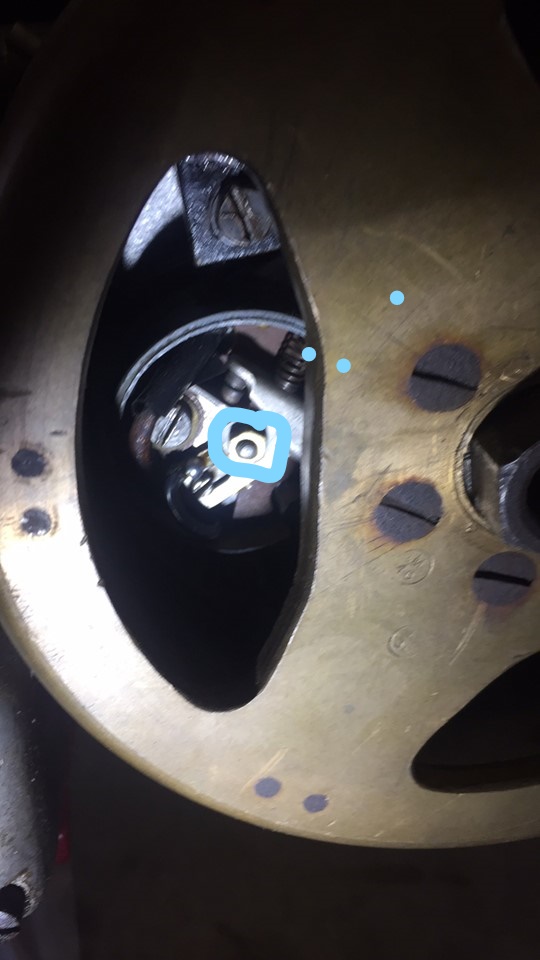

Hi I need to attach a Magnetic killswitch to my James for this weekends Pre 65 trials event. Can I attach the power wire from the killswitch to this wire circled in the photo of the points and then the negetive to the frame?

Post by **David Lahey** » Mon Sep 28, 2020 11:59 am

Can't see well enough in the photo Barry.
One kill switch wire connects to the wire that goes up to the HT coil.
The other kill switch wire is connected to a good earth.
The easiest location for the kill switch connections to be made is usually at the HT coil.

Barry Pugh · Post by **Barry Pugh** » Mon Sep 28, 2020 12:52 pm

thanks mate i was trying to get around it by not taking the flywheel off.

Post by **David Lahey** » Mon Sep 28, 2020 1:05 pm

Barry Pugh wrote:thanks mate i was trying to get around it by not taking the flywheel off.

No need to take flywheel off

TerrY · Post by **TerrY** » Mon Sep 28, 2020 5:47 pm

David,
This is a Villiers engine and all the HT stuff is behind the flywheel not up on the frame. A HT lead comes out from behind the flywheel straight to the spark plug.
My Villiers engine has been converted with the HT coil on the frame.
Barry,
I think you should identify which side of the points is the earth side. Attach the Kill Switch wire to the electrical connection on the live side of the points. The wire should be able to be routed in behind the flywheel from behind - maybe beside the HT lead to the spark plug. It would be a fiddly job working inside the flywheel, but I think you should be able to do it. The other kill switch wire just needs to be earthed as David said.

whitehillbilly · Post by **whitehillbilly** » Mon Sep 28, 2020 6:35 pm

Hi TerrY.
Must be a nice James you have. :wink:

You going to Stanthorpe ?

whitehillbilly

Barry Pugh · Post by **Barry Pugh** » Mon Sep 28, 2020 6:50 pm

thanks, Terry that was the reply I was hoping for. I will be starting work on this tomorrow then onto wheel building the day after. will ask for help if ok? thanks

TerrY · Post by **TerrY** » Mon Sep 28, 2020 7:19 pm

Barry,
You may ask questions but the answers may be dodgy.
I am not experienced with wheel building but I know a trials tyre just fits into swingarm with a lot of rubbing. The new type rear trials tyres ( tubeless ) are now wider and are harder to fit. I managed a couple of seasons ago to get a tube type tyre actual size 4.00 x 18 and it fits the swingarm better.

WhiteHillBilly (Shane),
I am hoping to get to Stanthorpe depending on some family matters. It is likely to be my penultimate ride and I may sell it after Conondale.

whitehillbilly · Post by **whitehillbilly** » Mon Sep 28, 2020 8:57 pm

Hi TerrY.
Better catch up this year, somewhere.
30 odd years since I built that James. Did i put alloy rims on it ? Got a feeling I did from my pic.
I cut the Tank badge stencil from a piece of cardboard and Stanley knife.

whitehillbilly
