Re: Basket Cases Italjet Myths

Post by David Lahey »

Greg Harding wrote:Having the handlebar mounts behind the headstem can feel a little funny, (sometimes called Tiller steering makes the bars swing in an arc) is another complaint I have heard about. My long arms make me a little cramped with the standard set up, so I have moved the bars forward 32 mm.
Has anyone else done this, I would be interested in feedback as I am not sure if I am simply justifying the feel after going to the Effort? Theoretically, manipulating the handlebars can give the same handle grip location in relation to the headstem. That is something that I learnt when reworking handlebars, I even experimented with 6 bend bars which work well on :yamaha TY175. Both Franken KT and FANTIC testarossa have had the same relocation and both feel better than standard. As for the PIUMA, it feels better standing and balancing.................
If only I could start It?

I absolutely love this topic
relax, nothing is under control
tat ty
Expert participant
Expert participant
Posts: 257
Joined: Sat May 07, 2005 6:12 pm

Re: Basket Cases

Post by tat ty »

I just need to ask this ... Do you blokes ever go to work ... Or is it MY LIFE that bac to front?

Alastair
David Lahey
Champion
Champion
Posts: 4117
Joined: Thu Jun 05, 2003 7:01 pm
Club: CQTC Inc, RTC Inc
Bike: Many Twinshocks
Location: Gladstone, Queensland

Re: Basket Cases

Post by David Lahey »

In case anyone is looking for a new, small front sprocket for their :kawasaki KT250 (I know I was looking a few years ago), here is a supplier for 13 teeth sprockets in 428 chain

http://shop.pbisprockets.com/product.sc ... egoryId=26
relax, nothing is under control
User avatar
Greg Harding
Golden Basket of Smiles
Golden Basket of Smiles
Posts: 908
Joined: Tue Mar 03, 2009 7:33 pm
Club: LRMTC & SQTA
Bike: NUMEROUS

Re: Basket Cases Bar Relocation

Post by Greg Harding »

Hi Everyone,
tat ty wrote:I just need to ask this ... Do you blokes ever go to BEEP ... Or is it MY LIFE that bac to front?

Alastair

Alastair, I hope you don't mind me editing your expletive?

Curiosity got the better of me, so I roll started the PIUMA on SUNDAY! Had to adjust the bars after riding it for a while to find the right position for me and I am very happy with it now. The main advantage of moving the bar mounts as I see it is the angle of the grips does not change like it does with simply rolling the bars forward.

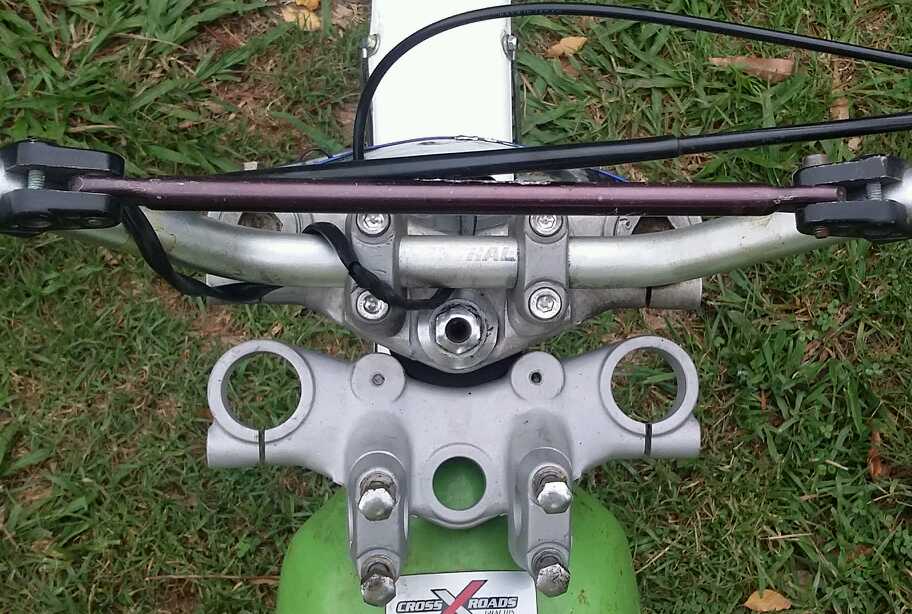

Below is a photo of :kawasaki FrankenKT with bar mounts moved forward along with a standard top:

It is an easy conversion with no welding required. I simply cut the mounts off with a hacksaw and filed them flat. Then re drilled 4 holes using the 2 front holes for location and tapped them 8 X 1.25mm. Then drilled the middle pieces out to 8 mm, longer bolts were my only Expense!
2017 Newsflash: RUST IS THE NEW BLING !
Team Hardwood, the only licenced trials riders in Coffs Harbour!
Miles of Smiles
Greg Harding
David Lahey
Champion
Champion
Posts: 4117
Joined: Thu Jun 05, 2003 7:01 pm
Club: CQTC Inc, RTC Inc
Bike: Many Twinshocks
Location: Gladstone, Queensland

Re: Basket Cases

Post by David Lahey »

Greg that's got to be the most creative and economical method I've ever seen for doing the bar mount move mod
relax, nothing is under control
tat ty
Expert participant
Expert participant
Posts: 257
Joined: Sat May 07, 2005 6:12 pm

Re: Basket Cases

Post by tat ty »

That's bloody brilliant!
darrenc
C grade participant
C grade participant
Posts: 25
Joined: Mon Dec 12, 2011 10:16 pm
Club: logan river
Bike: gasgas280

Re: Basket Cases

Post by darrenc »

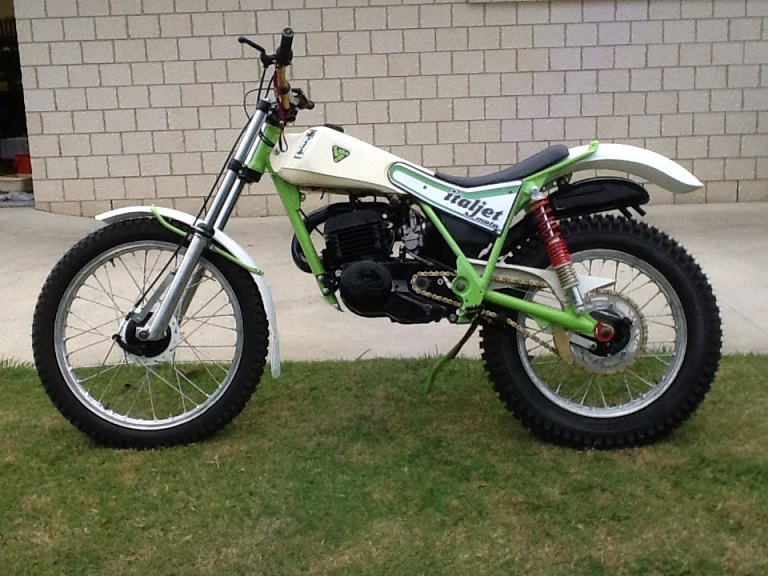

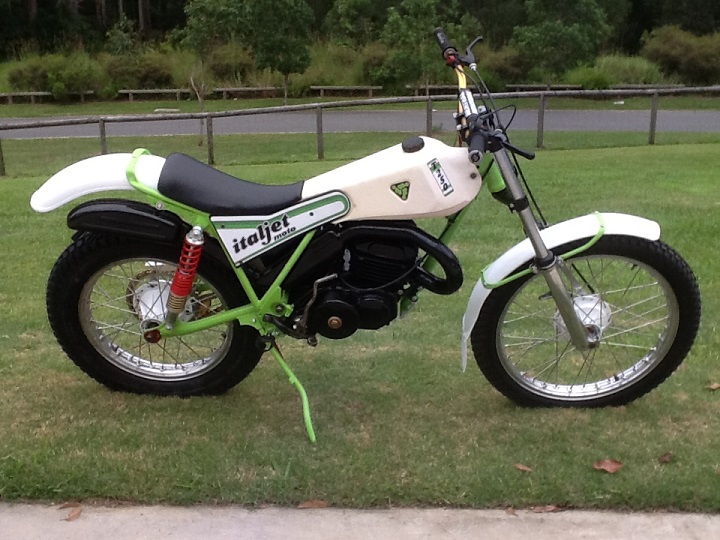

all done just need to do some tweaking
Attachments
David Lahey
Champion
Champion
Posts: 4117
Joined: Thu Jun 05, 2003 7:01 pm
Club: CQTC Inc, RTC Inc
Bike: Many Twinshocks
Location: Gladstone, Queensland

Re: Basket Cases

Post by David Lahey »

Nice, Darren. What shocks are those and are they good?
relax, nothing is under control
darrenc
C grade participant
C grade participant
Posts: 25
Joined: Mon Dec 12, 2011 10:16 pm
Club: logan river
Bike: gasgas280

Re: Basket Cases

Post by darrenc »

magical shocks. don't now yet but rode my mates bike in the uk with them on and like them so we will see how they go
Bully fanatic
Expert participant
Expert participant
Posts: 403
Joined: Mon Apr 11, 2011 4:56 pm
Club: westerndistricttrialsclub
Bike: Bultaco sherpa T

Re: Basket Cases

Post by Bully fanatic »

That does look good Darren. Very nice!
