I have numbered these and if you could add your input to a picture number that would be greatly appreciated.
1I made this wire loop up based on some advise gained hear is it the right shape and position to hols the loom
- 1 loom holder (Small).JPG (43.73 KiB) Viewed 2327 times

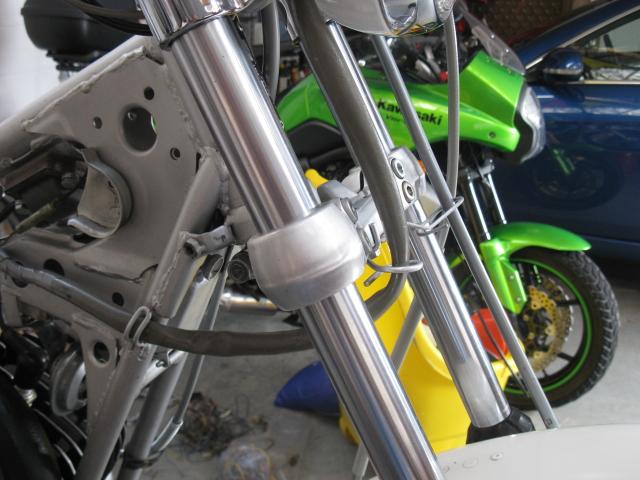

1/1 the cable really wants to sit hear and is barely touching anything which says to me its in its happy spot.
- 1.1 loom position (Small).JPG (57.53 KiB) Viewed 2327 times
2 made this based on I was advised hear that it has one and the glimpse I can get through parts manuals it looks like this. How close is it?
- 2 cable holder (Small).JPG (43.04 KiB) Viewed 2327 times

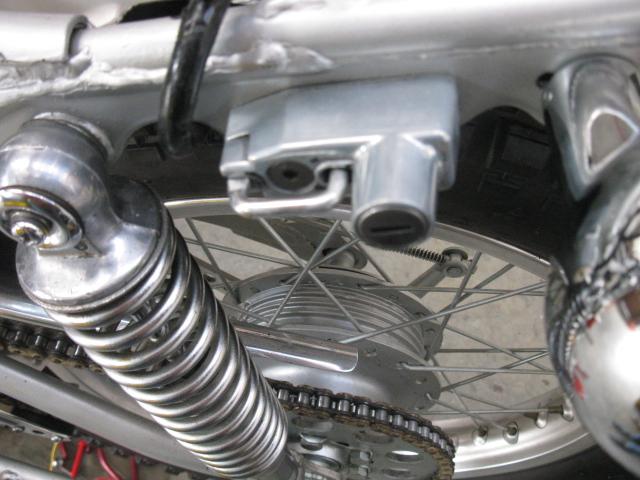

3 Is this the right helmet lock?
- 3 helmit lock (Small).JPG (52.96 KiB) Viewed 2327 times
4 not asking any thing just that I want to clarify to Ernie that I did not buy this new but pulled it apart as the face was spotty, cleaned it, sprayed with silicon, re-chromed the body, flicked the Speedo, put together and painted the top section in place.
- 4 speedo (Small).JPG (42.49 KiB) Viewed 2327 times
5 is this the standard mirror
- 5 mirrors (Small).JPG (42.86 KiB) Viewed 2327 times

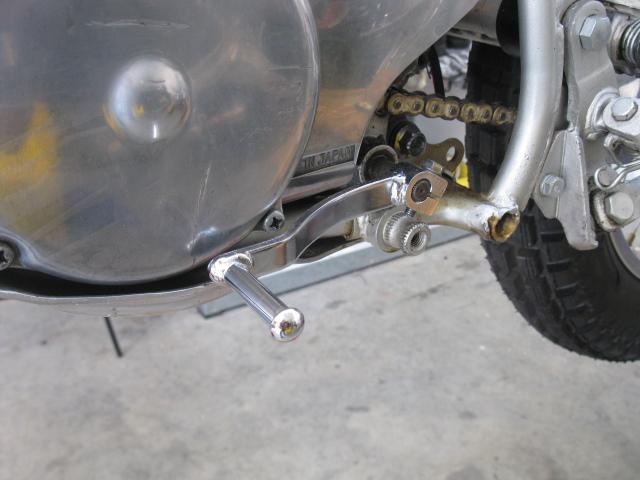

6 is the gear leaver supposed to have a rubber on it?
- 6 gear leaver (Small).JPG (39.29 KiB) Viewed 2327 times
9 is that the right washer
- 9 muffler bwasher (Small).JPG (41.54 KiB) Viewed 2327 times
10 is that the right washer
- 10 exhaust bolt (Small).JPG (42.75 KiB) Viewed 2327 times
11 I believe this is the original front tyre haw can I tell.
- 11 original tyer (Small).JPG (46.48 KiB) Viewed 2327 times
12 see any thing odd let me know
13 are the dampers in the right place
14 are the old yellowed cable straps the right ones
15 new addition thanks to Greg
16 new seat out of the wrapper showing off
17 is this the right washer bolt and tail light combo
18 this is a reproduction of the right tail light except for the real one has a red side reflector. Yellow is a US thing it thinks.
18.1 I have a original lens but it doesn’t quite fit the reproduction base plate. Any one with a original base plate I would be interested. Plus are these round reflectors on each side for our bike
19 is that how the throttle cable runs
20 is that wire loop for the brake cable or the throttle cable on the other side
21 see any thing odd let me know
22 I’m using the 206 shell wired to suit our wiring loom requirements as I think it looks better. (not original I know)
23 I believe these black plastic cases are the right ones for us. Don’t look as good though
24 when I put this motor back together I think I put the kick starter starting point in the wrong position. It sits at the top like normal but does not get compression till there.
25 what type of loom holder goes there
26 what type of cable holder holds the clutch cable there? Metal with plastic sleave, black plastic or clear plastic
27 battery box is new thanks to Greg. Are these the right blot and washers holding it on?
28 should I find a smaller top breather tube and run it through the casted hole on the carby body
Any help is good help in getting this bike back to original.
Thank you
Eric
