1990 Honda TLM 260 footpegs

[Rod]

Does anyone know of footpegs available for above, preferably wider than the originals.
I can't see anything that looks close on the banyeres site, and when i sent an email enquiry to him, i got a mixed reply of english and spanish that i deciphered as NO. I think.
Any other suggestions, please.

[David Lahey]

Can you post a decent photo showing how the existing ones mount?

[mike-b]

same as the TLR250 footpegs

will check were i got mine from
from here
http://www.trialsbits.co.uk/

[Rod]

I think the TLR pegs mount differently, they look different in photos to me.
Basically, the TLM has a huge lug on the frame about 12mm in thickness which the forked footpeg wraps around. In other words, the frame lug is like the male part and the peg is the female.
I'll get a photo up tomorrow. cheers.

[chippy]

Hi all,
It might be worth contacting Greg Harding as he has done some fantastic work on modifying footpegs for all of my older bikes and at a very reasonable price also.

Chippy

[eagle]

If they are the same as the TLR i bought some wide XR 400 of ebay for about $50, all the needed was a thin line of weld on the back of the pivot point to get them level, very happy with them !

[mike-b]

Well i have the TLM260 and a TLR250 and they fit

TLR250 are not the same as TLR200 pegs and yes i think xr400 fit

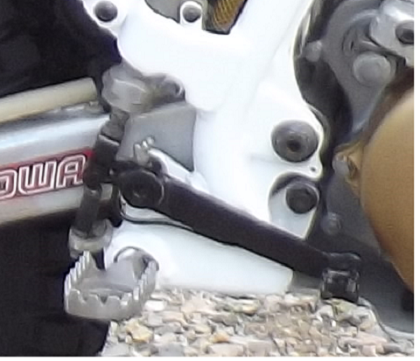

tlm footpeg.png (201.98 KiB) Viewed 7125 times

[Rod]

Excellent, that makes things easier knowing TLR/TLM are the same and i have the XR option. That Banyeres fellow needs to scrub up on his english, or me on my spanish, although i thought i had it covered with being able to use words like, GasGas, Bultaco, Montesa, Ossa.

[Rod]

mike-b, those stainless TLR pegs from trialsbits are exactly the type of thing i was searching for, thanks. For whatever reason i didn't see them when i initially checked out that link you posted. That snapshot of your frame/pegs hints at a very tidy machine, can you show us some more pics please?

I've ordered those pegs from trialsbits and i've got mudguards on the way from banyeres.

I'd like to know what people suggest for sourcing other replacement parts such as........ air filter, gear lever, piston & rings, anything really that is relevent to the TLM.

[mike-b]

mikes bikes 011a.jpg (253.1 KiB) Viewed 7082 times

there you go

you can get the rtl air filters to fit
