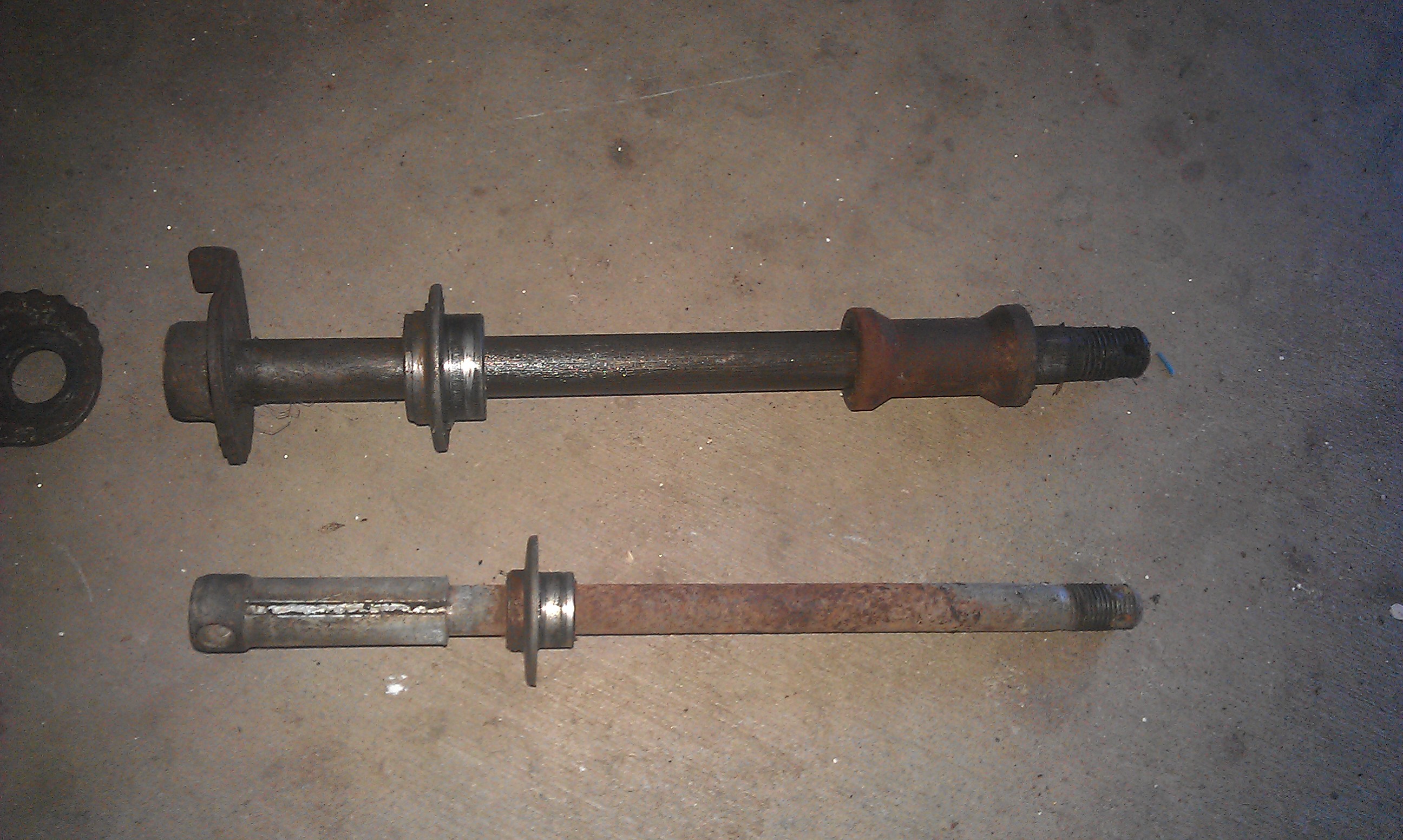

Front axle is 12 mm diameter
seal spacer 18 diameter x 16 long. shield is 35.8 diameter
clamping spacer 16 diameter when relaxed, 45.3 long with 3 mm gap when relaxed
Rear axle is 15 mm diameter
seal spacer 26 diameter x 19 long. shield is 41 diameter
brake plate side spacer is 26.2 diameter x 45 long with waisted section 20 diameter
The positions for the shields (if required) can be located once the wheel bearings and seals have been fitted.
info on TY175 axle spacers
Moderator: Moderators
-
David Lahey
- Champion
- Posts: 4117
- Joined: Thu Jun 05, 2003 7:01 pm
- Club: CQTC Inc, RTC Inc
- Bike: Many Twinshocks
- Location: Gladstone, Queensland
-
TY-TRIALS-UK
- Junior participant
- Posts: 5
- Joined: Sun Dec 22, 2013 8:39 am
- Club: Consett
- Bike: TY175
Re: info on TY175 axle spacers
Great stuff.
Very useful info. Hopefully get some pictures up when my mate machines some spacers in T6 alumimium.
Very useful info. Hopefully get some pictures up when my mate machines some spacers in T6 alumimium.
