Wiring loom routing question for TY175JE

[Tioli]

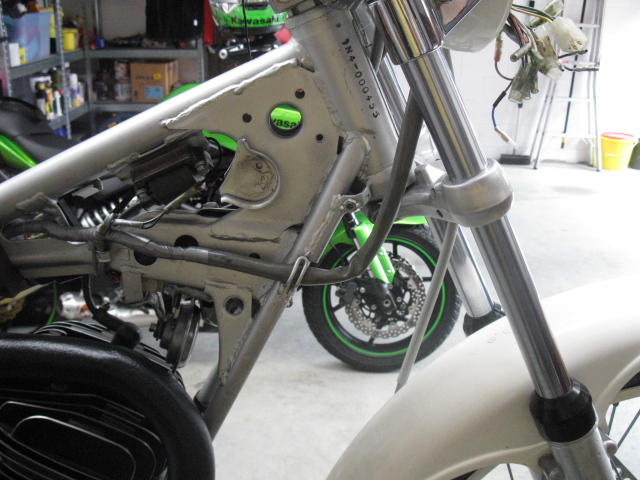

Hi As you can see in the first photo the wiring loom sits in the frame clit but I was advised that there is a bolt on thingie that holds the loom in the right place.
Is what I found in my spare bits the right part and is that how it goes?
If you have a photo of how it goes with the clipe thing that would be very nice thank you
Eric

[Reinald]

Hi there is a free manual for TY175s at http://www.trialsport.com.au/TY175/

[Tioli]

Thank you very much Reinald. I have that manual and have looked top to bottom and its not there.

[PA]

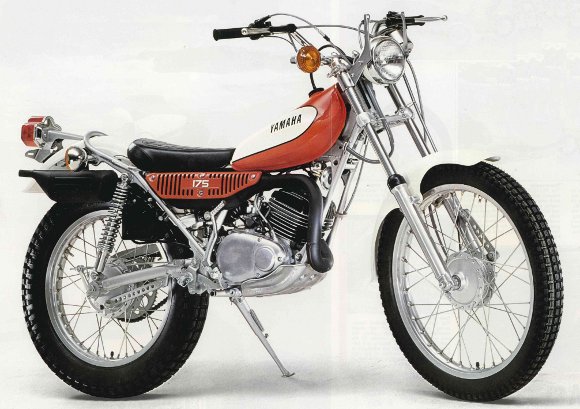

Found this picture showing the wiring loom.

[Reinald]

@Tioli - the second piccy of yours looks to be the more protected than standard. Apologies for bum steer on the manual - cool free resource eh?

[Tee-Why]

The clamp thingie, is known as a P-Clamp, if anyone is looking for one.

[pop]

I would rather polish a fork tube then have sex how does one put a picture here?????????

[PA]

I would rather polish a fork tube then have sex how does one put a picture here?????????

Read and see the picture.
viewtopic.php?f=16&t=5825

[pop]

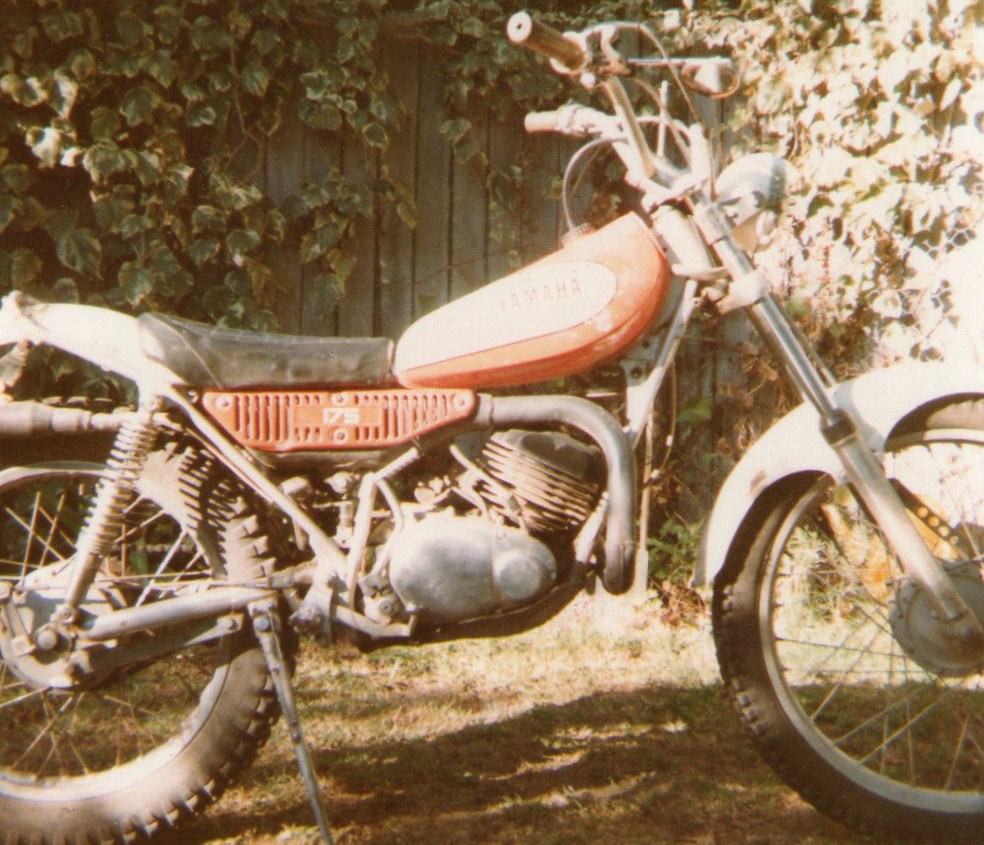

Thanks PA, Ill try and but in a picture of my almost new Ty Taken in 1977 I think.

[Tioli]

Thats the one. Thanks PA
